Vector H7 Vision Controller

Camera · 32 MB SDRAM · Ethernet · trigger.

STM32H743IIT6108 × 88 mm

Contact →Twin One

Vector H7 Vision Controller

Specifications

MCU	STM32H743IIT6
Core	Cortex-M7, 480 MHz
Size	108 × 88 mm
Interfaces	CameraTrigger inLCD (optional)EthernetCANUSB-CmicroSD
Key parts	STM32H743IIT6IS42S16160JW25Q128JVLAN8742ACA-IS3062W

Highlights

32 MB SDRAM
16 MB flash
Isolated trigger
Runs Twin Vision jobs

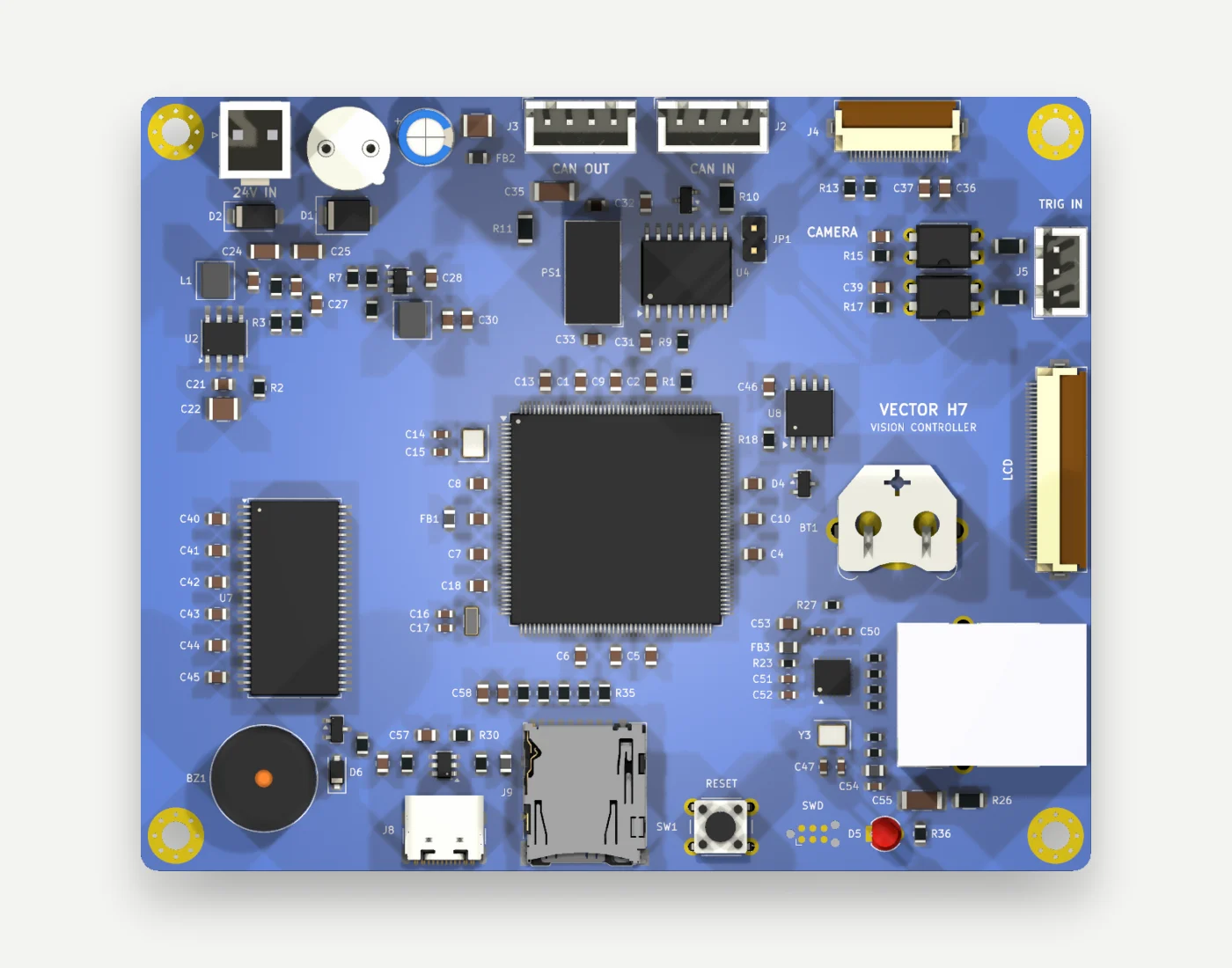

Vector H7 Vision Controller, top — Top

Vector H7 Vision Controller, perspective — Perspective

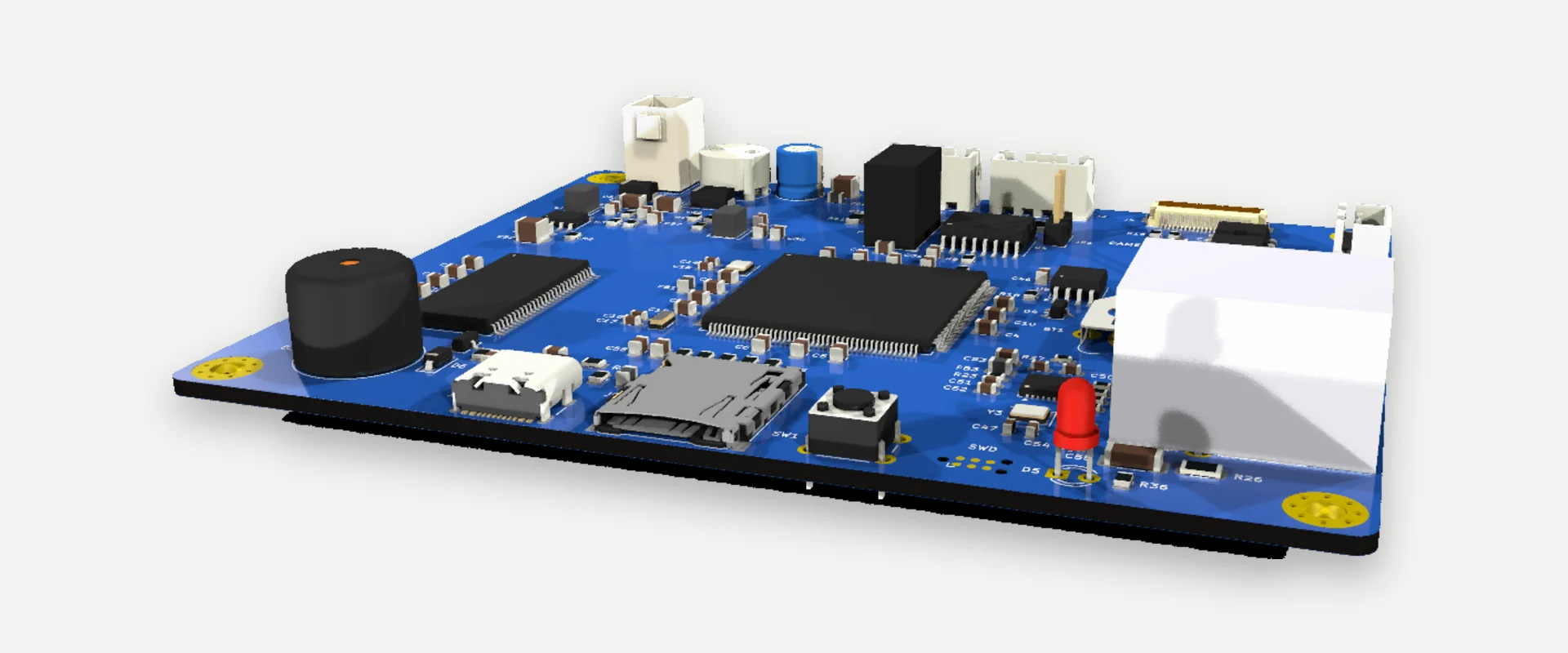

Vector H7 Vision Controller, low angle — Low angle

Demo · 3D render · design R4
