Vector F4 Machine Controller

I/O · RS485 · CAN · encoder · STEP/DIR · microSD.

STM32F405VGT6125 × 85 mm
Contact →Twin One
Vector F4 Machine Controller
Specifications
MCUSTM32F405VGT6
CoreCortex-M4F, 168 MHz
Size125 × 85 mm
Interfaces
DI 0–3 / DO 0–3AI 0–1Load cellEncoder ABZSTEP / DIRRS485CANUSB-CmicroSD
Key parts
STM32F405VGT6BSP76EL354NEL817CSM712B0305S-1WR3
Highlights
  • Machine logic and motion
  • RS485 and CAN
  • Real-time clock
  • USB-C programming

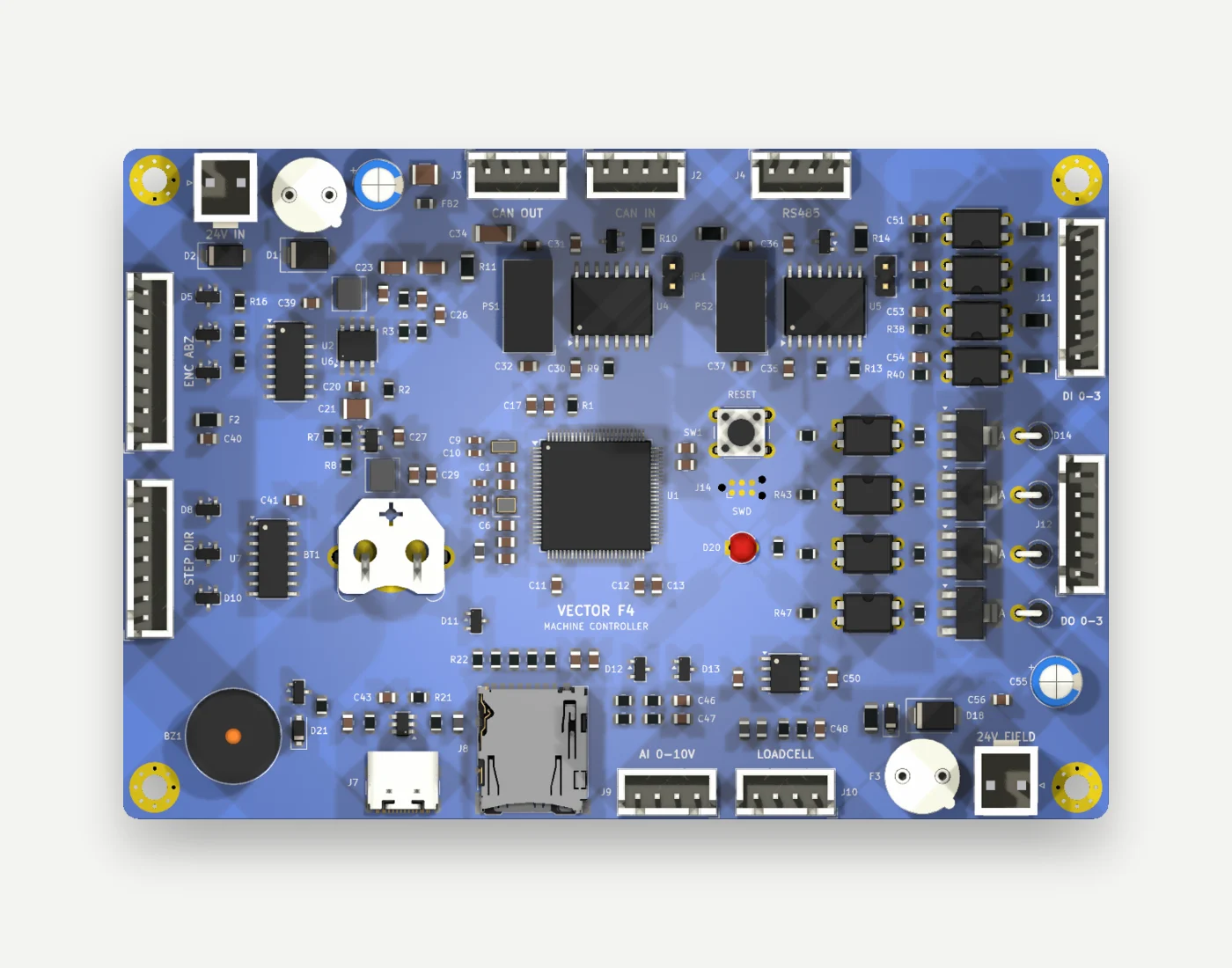

Vector F4 Machine Controller, top
Top
Vector F4 Machine Controller, perspective
Perspective

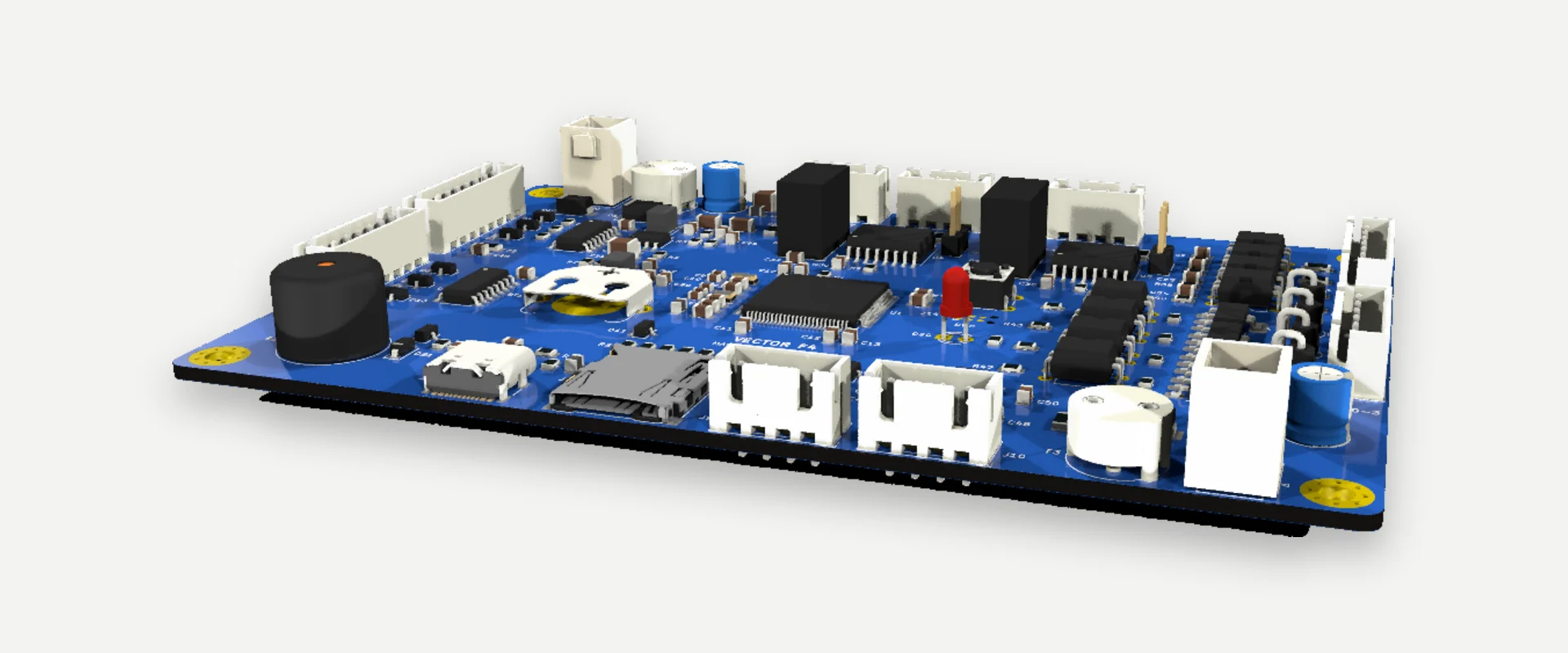

Vector F4 Machine Controller, low angle
Low angle

Demo · 3D render · design R4
