Vector F1 Field Control

8 DI · 8 DO · 2 AI · isolated CAN.

STM32F103CBT6100 × 80 mm
Contact →Twin One
Vector F1 Field Control
Specifications
MCUSTM32F103CBT6
CoreCortex-M3, 72 MHz
Size100 × 80 mm
Interfaces
DI 0–7, opto-isolatedDO 0–7, high-sideAI 0–1Isolated CANUSB-CSWD
Key parts
STM32F103CBT6CA-IS3050WBSP76EL817CLM5164USBLC6-2SC6
Highlights
  • 8 opto-isolated inputs
  • 8 high-side outputs
  • Isolated CAN
  • Locking connectors

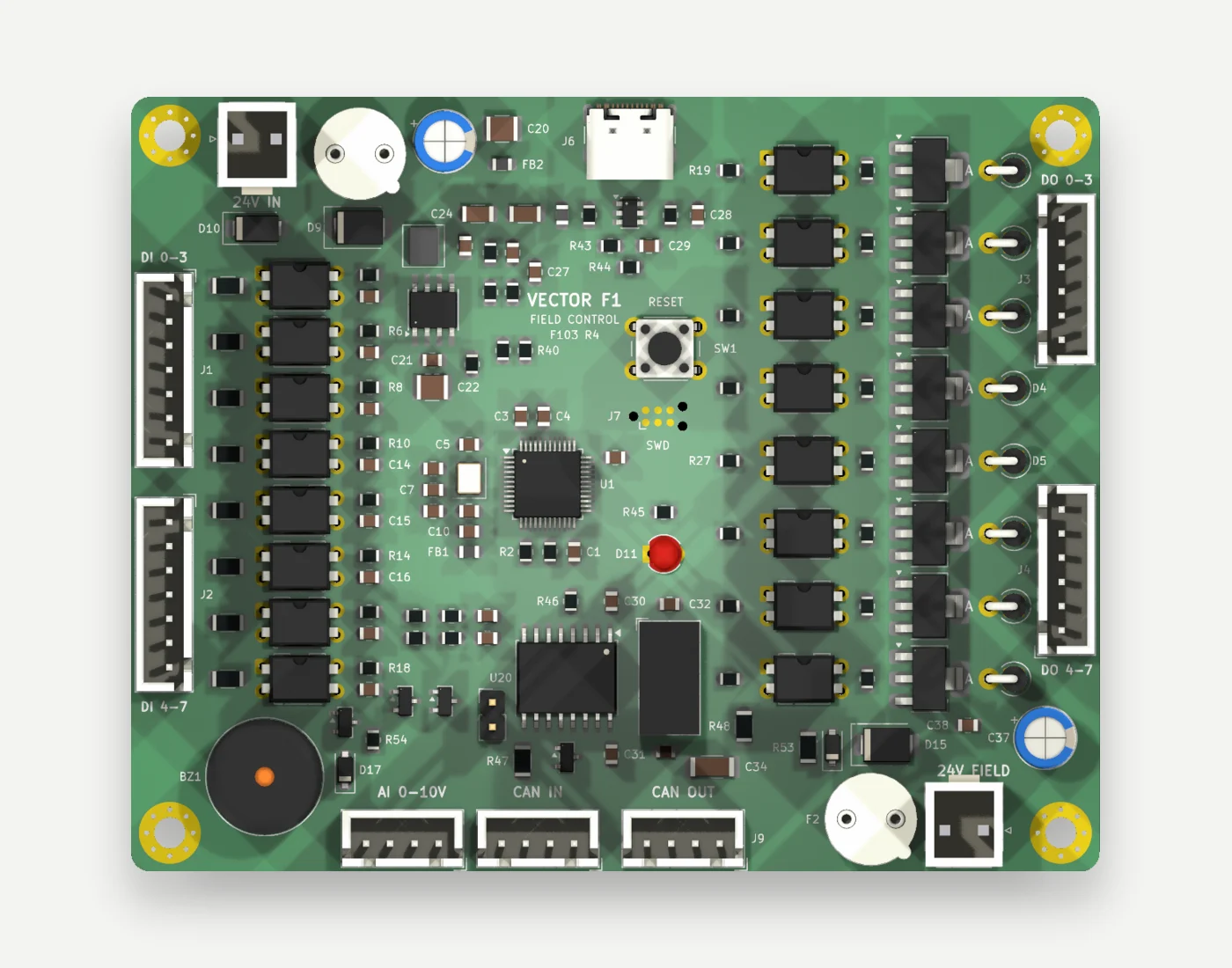

Vector F1 Field Control, top
Top
Vector F1 Field Control, perspective
Perspective

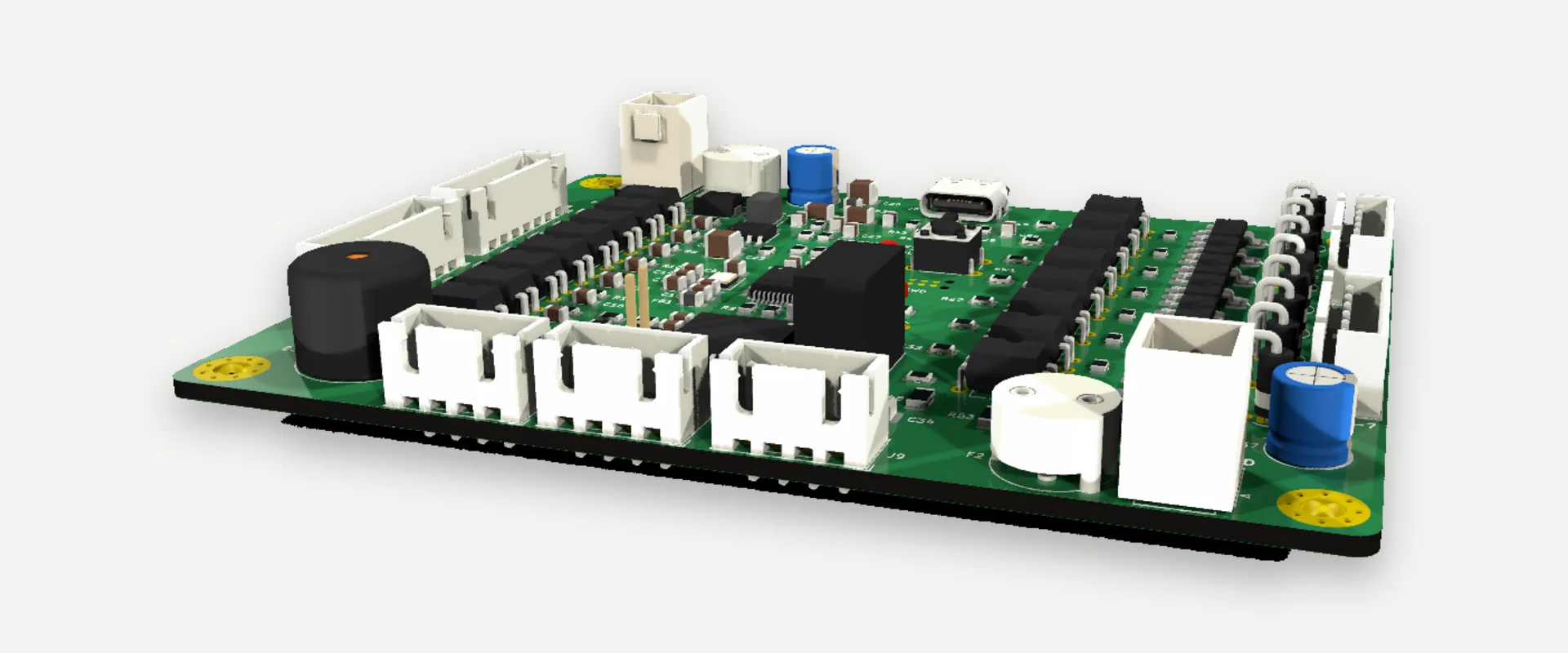

Vector F1 Field Control, low angle
Low angle

Demo · 3D render · design R4
